NANOPATCH X

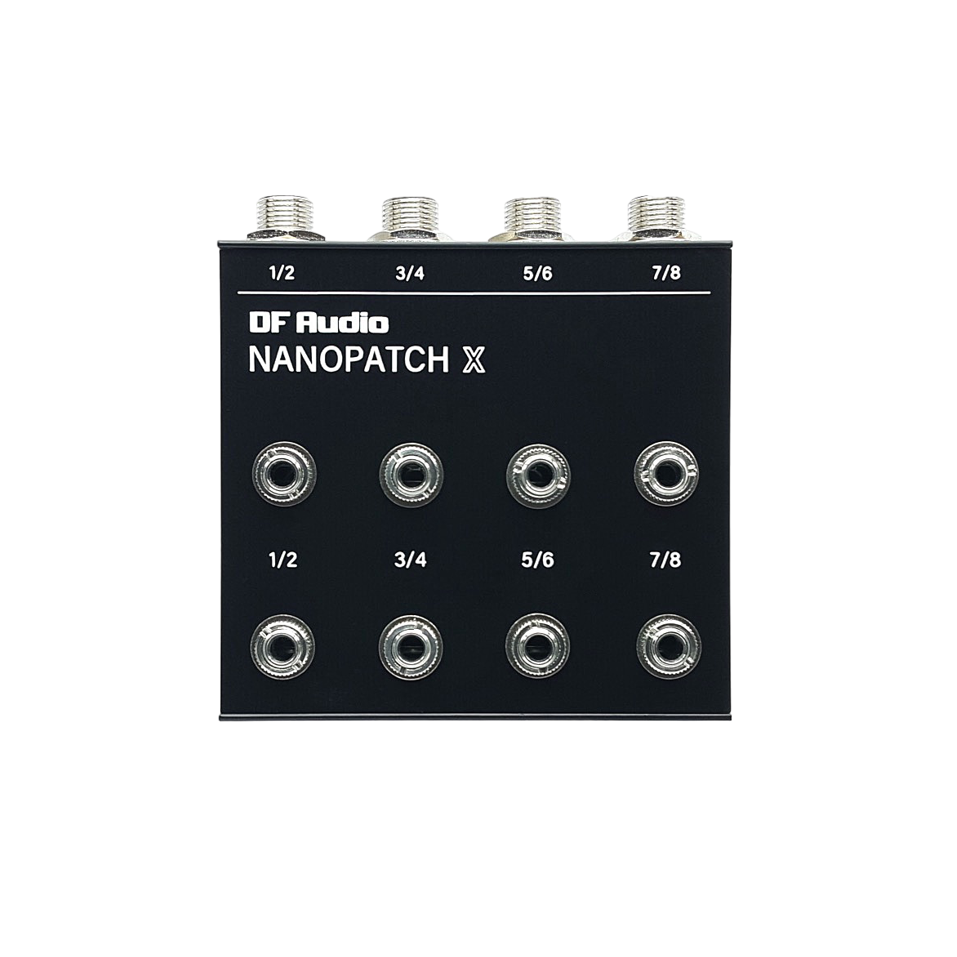

NANOPATCH X is a tiny 8-point patch bay, primarily designed for use in conjunction with other DF Audio patch bays (though it can also be useful just by itself).

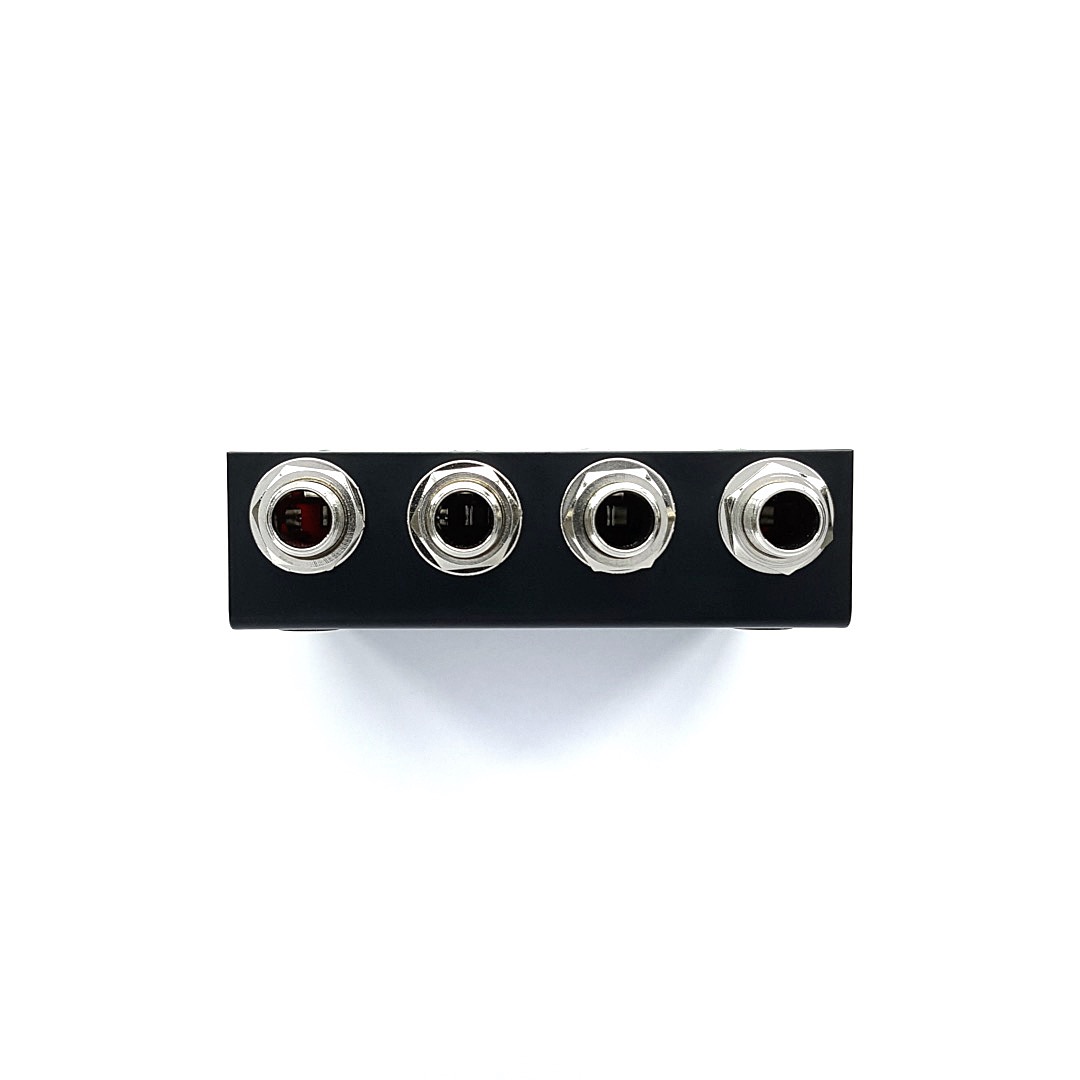

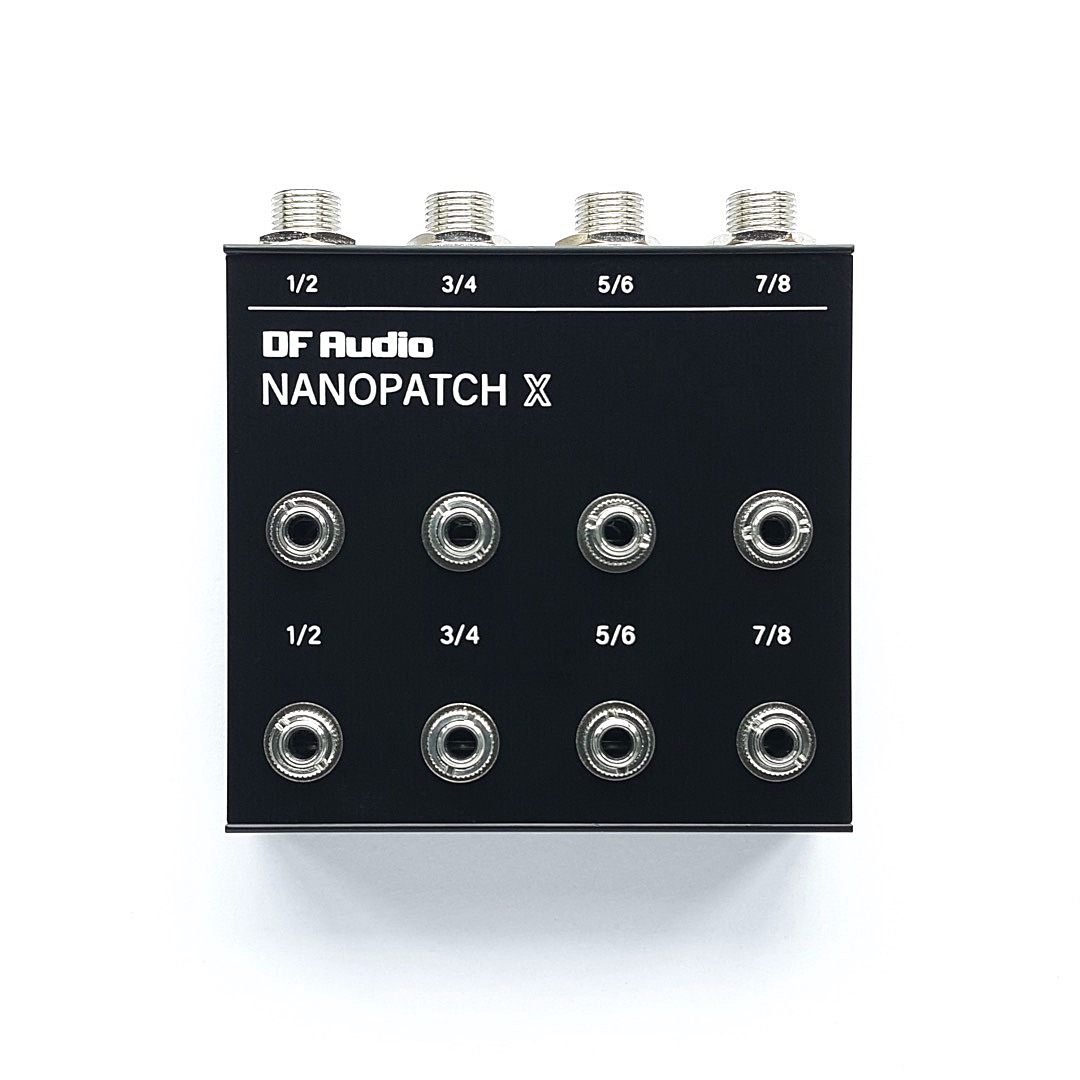

It has four 6.35 mm TRS sockets on the back, each of which break out to two 3.5 mm TS sockets on the top panel (identical wiring to the MINIBAY V2 FX rows).

Use insert cables to connect up to four effects pedals via the rear sockets and get patchable access to the ins and outs on the top panel.

It can be also used as a breakout box for devices that output CV over TRS sockets (e.g. MPC One).
