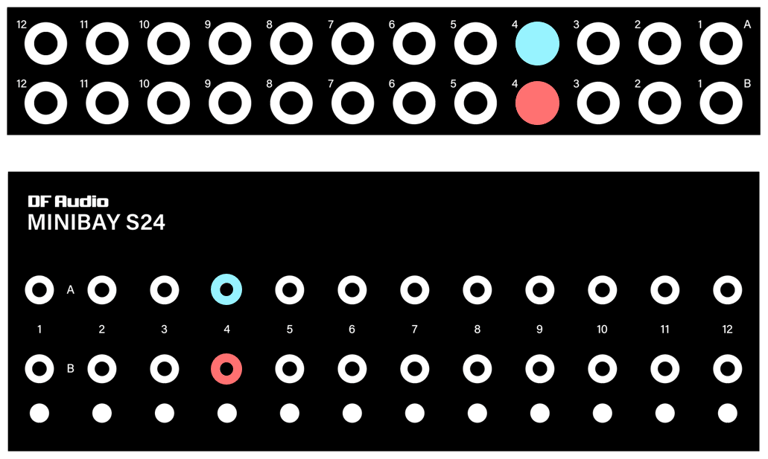

The MINIBAY S24 has one-to-one correspondence between the 1/4" TRS sockets on the back panel and the 1/8" TRS patching sockets on the top panel.

All connections support balanced signals, as well as unbalanced mono and stereo signals.

The included 1/8" TRS patch cables make routing stereo signals easy, as only one cable is needed for both left and right channels.

Additionally, one TS to TRS patch cable is included for routing mono signals to stereo channels (they can also be bought separately if you need more).

Watch the tutorial video for different ways to connect and route mono and stereo signals on the MINIBAY S24.

Each A/B pair on the MINIBAY S24 has a switch to toggle between the patched connection and a half-normalled connection.

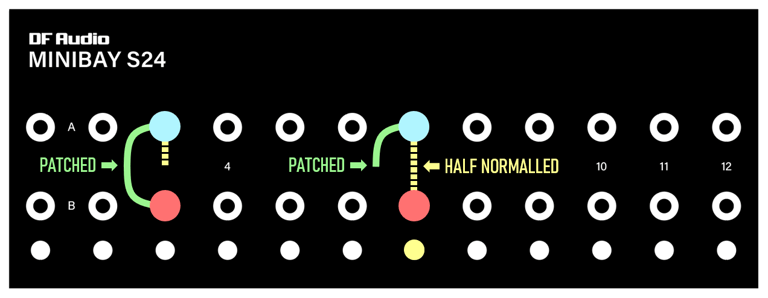

When half-normalling is engaged, a hidden connection is made between the upper and lower sockets in a pair, which overrides the patched connection to the lower socket.

The upper socket maintains both the patched connection and the normalled connection. This effectively allows you to split the signal and take it to two separate inputs (e.g. a mixer and an audio interface).

IMPORTANT: When using half-normalled connections, the outputs should be on the top row and inputs on the bottom row (detailed explanation here).

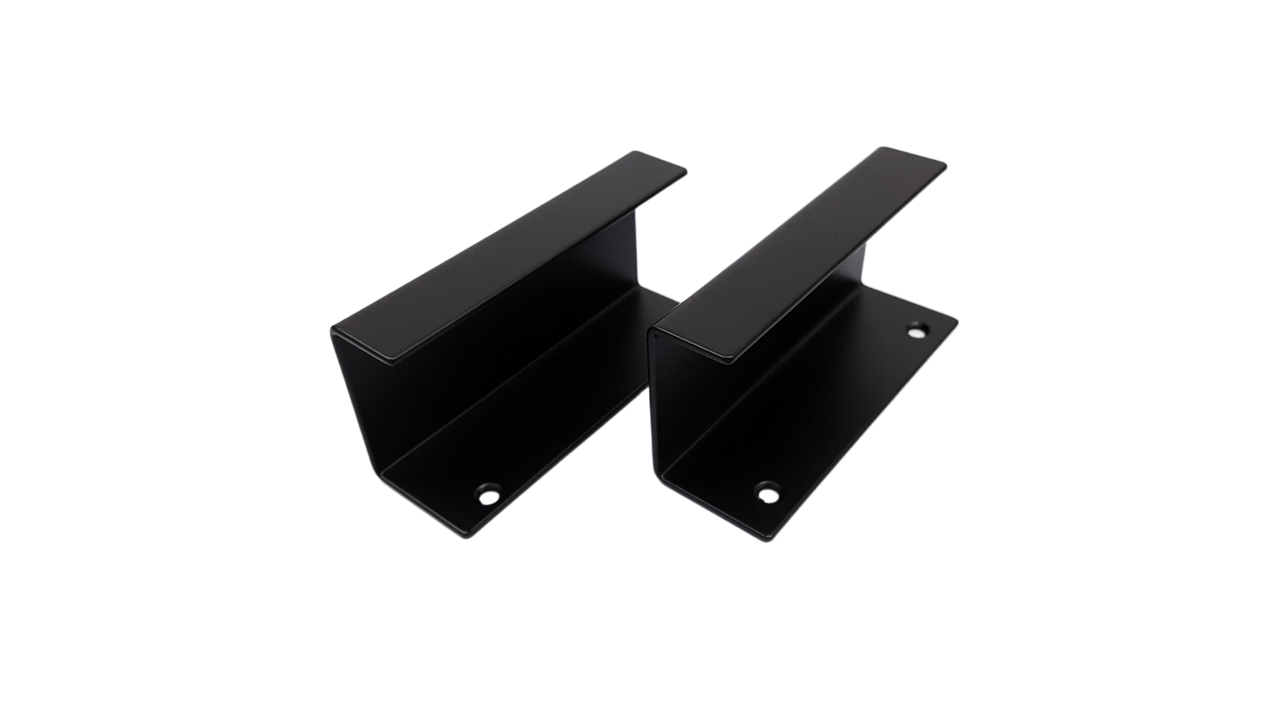

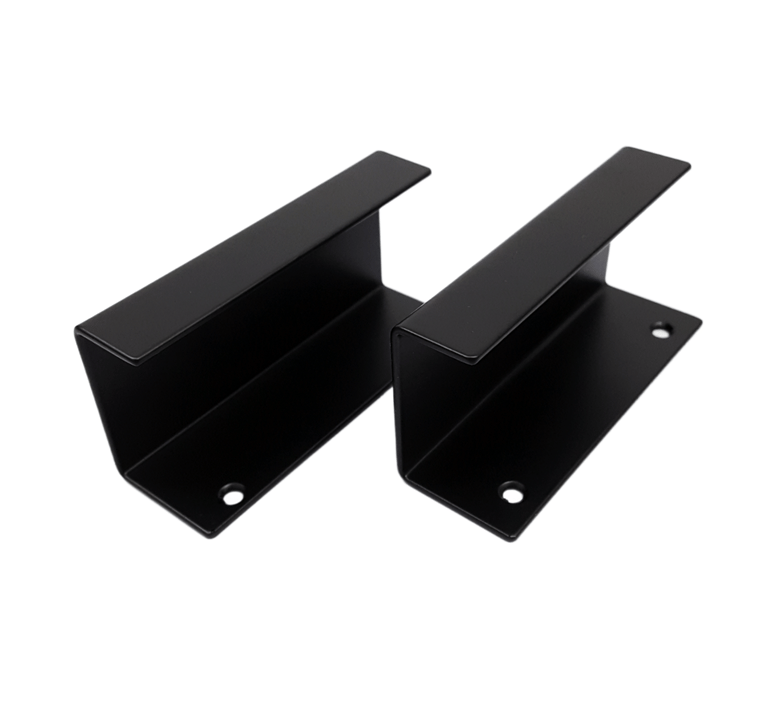

Brackets

TRS to TS Patch Cables

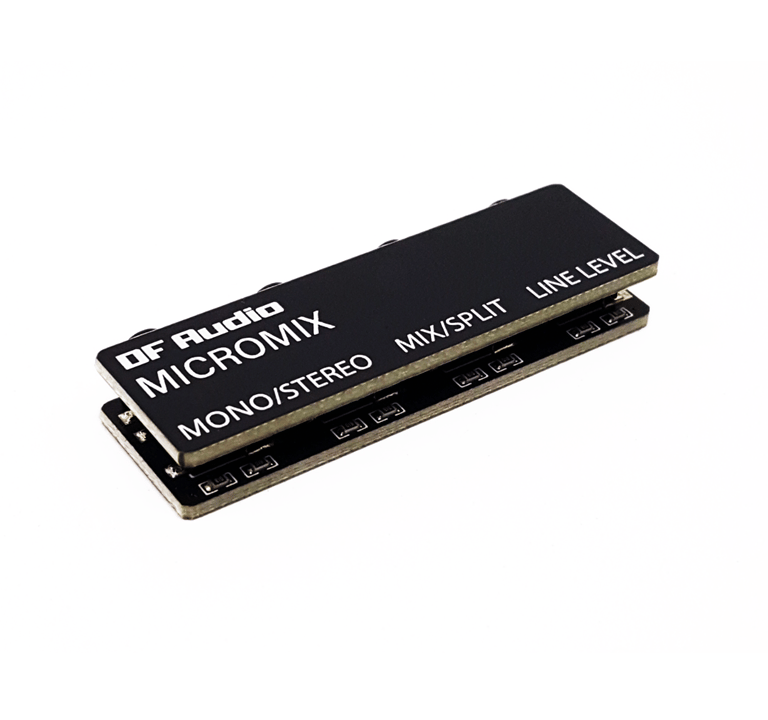

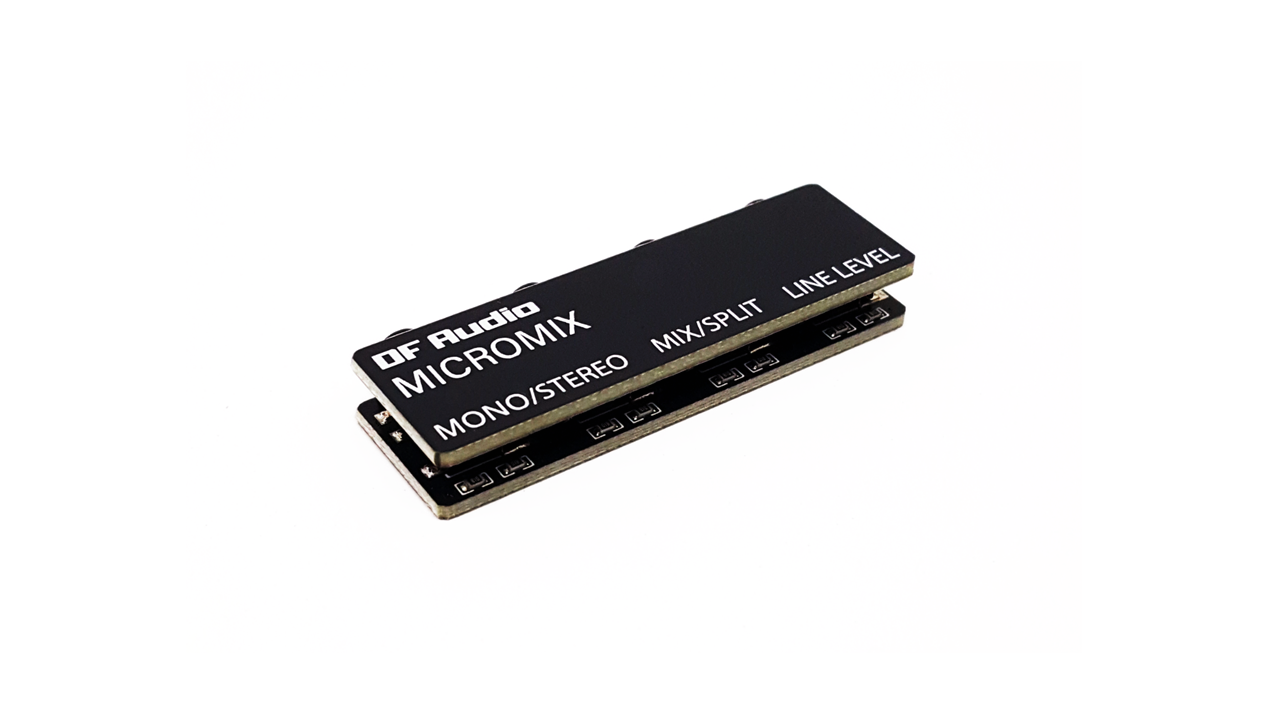

MICROMIX
